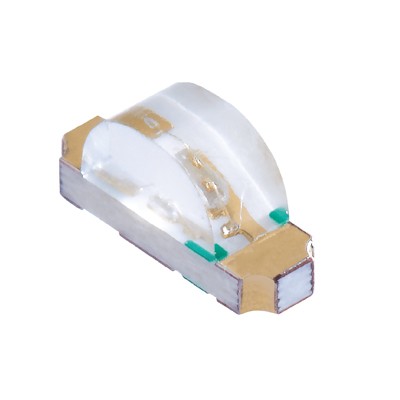

1204 smd led chip side view

Product Item : RS1204AXG
Category： Side view

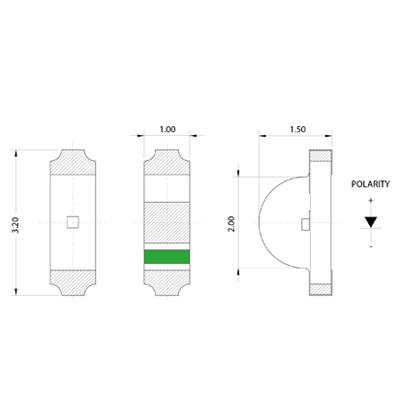

Size 3.2 x 1.0 x 1.5 mm
side view led
high intensity
View angle:130°
INQUIRY EMAIL

Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications.

Part No.	Color	Wavelength/CT	Lens type	Intensity	View Angle	VF(V)	IF(mA)
R1204AXG	Red	620~630nm	Water Clear	150~250mcd	130°	1.9~2.2V	20mA
Y1204AXG	Yellow	585~595nm	Water Clear	130~250mcd	130°	1.9~2.2V	20mA
B1204AXG	Blue	455~465nm	Water Clear	120~200mcd	130°	2.8~3.4V	20mA
YGS1204AXG	Yellowlish Green	565~575nm	Water Clear	150~250mcd	130°	1.9~2.2V	20mA
PGS1204AXG	Pure Green	520~525nm	Water Clear	300~500mcd	130°	2.8~3.4V	20mA
OS1204AXG	Orange	600~610nm	Water Clear	100~200mcd	130°	1.9~2.2V	20mA
WS1204AXG	White	1800~20000K	Yellow Diffused	800~1200mcd	130°	2.8~3.4V	20mA

Features
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 3000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant

APPLICATIONS
Backlight Status indicator for keypad and keyboard.
Home and smart appliances
Wearable and portable devices
Healthcare applications
ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.
