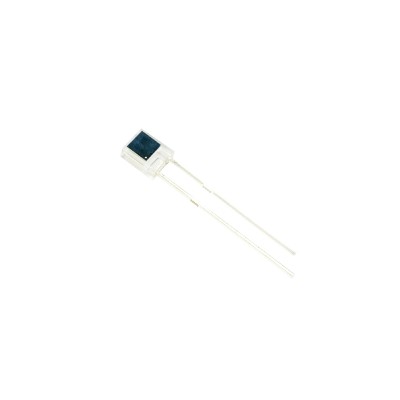

940nm Water Clear Plastic Photo Diode
- Product Item : LID3535G03L1
- Category： Infrared LED and Detector
- Wavelength λd (nm):940nm
- Reverse Light Current (IL):10
- Radiation Intensity Ie (mW/sr):150
- Forward Current IF (mA):/30
| Part No. |
Wavelength λd (nm) |
Radiation Intensity Ie (mW/sr) |
Viewing Angle (deg.) |
Reverse Light
|
Forward Current IF (mA) |
|
LID3535G03L1 |
940nm |
150 |
/ |
10 |
30mA |
FEATURES:
High-brightness
High reliability
Low-voltage characteristics
Pb FREE Products
RoHS Compliant

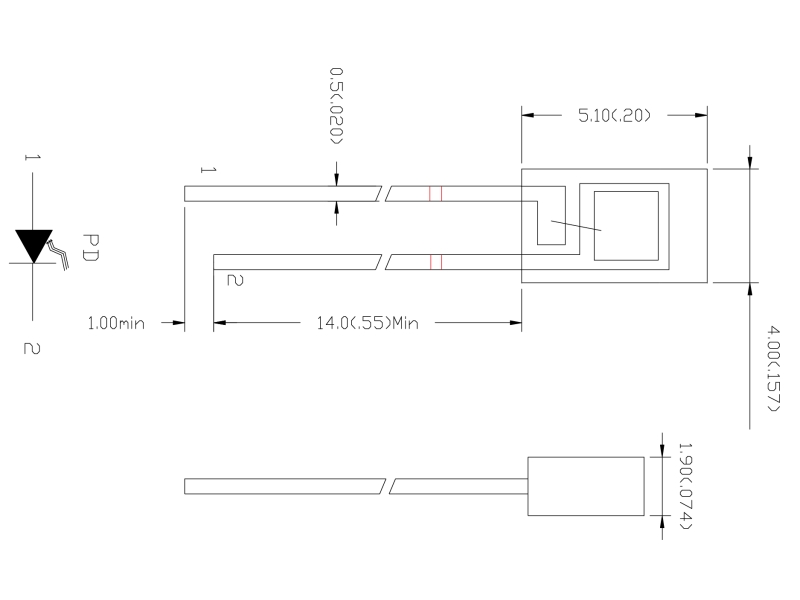

Note:
All Dimensions are in millimeters
Tolerance is ±0.25mm(0.010 ") Unless otherwise specified
Protruded resin under flange is 1.5mm(0.059 ") max
All design applications should refer to ArkTech through hole LED application notes.
