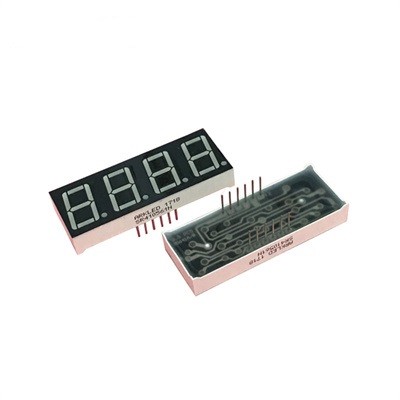

Numeric LED display, 0.56 inch, four digits

Numeric  LED  displayh  refers  to  a  device  that  uses  LED  (Light  Emitting  Diode)  to  display  numeric  information.  It  typically  consists  of  a  series  of  LED  units,  each  of  which  can  display  a  single  digit.  These  LED  units  can  be  arranged  sequentially  to  form  a  numeric  display  screen.  Numeric  LED  displays  are  commonly  used  in  various  applications,  such  as  digital  clocks,  scoreboards,  and  instrument  panels,  where  clear  and  easy-to-read  display  of  numeric  information  is  required.

Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Parameter

(1) Digit：four.
(2) The height of glow surface：0.56 inches.
(3) Total PINs：12pins.
(4) Public feet：6 8 9 12.

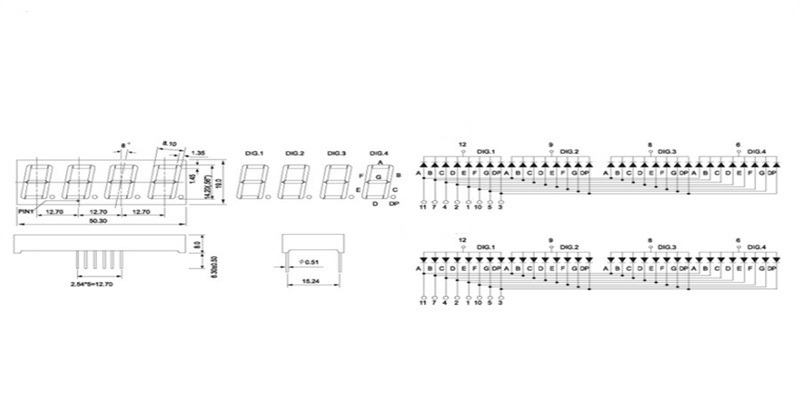

(5) Dimensions：59.3x19.0x8.0mm.
(6) Glow color：bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color：black/gray.
(8) Epoxy color：white/red/green/blue/yellow.
(9) Polarity：common anode/Common Cathode.
(10) Using temperature range：-20 to 80 degrees Celsius.

If you want to know more about this item, please download the data sheet.

If you want to know other items, you can download our E-catalogue.

All design applications should refer to ArkTech segment LED application notes.
