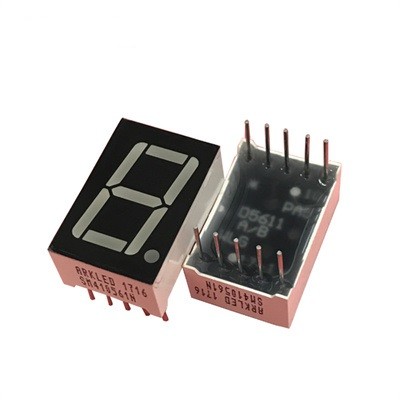

Digit display, 0.56 inch, one digit

Product Item : R11303A
Category： Single digit
Type: Digit display
Digits: one
Size: 0.56 inch
Polarity: Common anode and cathode
Attachment INQUIRY EMAIL

A digit display is a seven-segment display, is a type of electronic display that consists of seven individual segments arranged in the shape of a digit "8". Each segment can be individually controlled to form different numbers (0-9) and some letters (A-F) by selectively illuminating or turning off the segments.

Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Part No.	Color	Wavelength/CT	Polarity	Size	Digits	VF(V)	IF(mA)
R110563A	Red	620~630nm	CA/CC	0.56"	One	1.9~2.2V	20mA
Y110563A	Yellow	585~595nm	CA/CC	0.56"	One	1.9~2.2V	20mA
B110563A	Blue	455~465nm	CA/CC	0.56"	One	2.8~3.4V	20mA
YG110563A	Yellowlish Green	565~575nm	CA/CC	0.56"	One	1.9~2.2V	20mA
PG110563A	Pure Green	520~525nm	CA/CC	0.56"	One	2.8~3.4V	20mA
O110563A	Orange	600~610nm	CA/CC	0.56"	One	1.9~2.2V	20mA
W110563A	White	1800~20000K	CA/CC	0.56"	One	2.8~3.4V	20mA

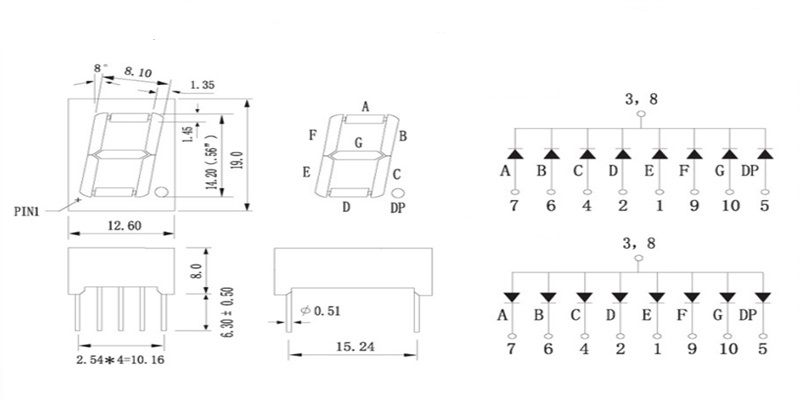

Parameters

(1) Digit: single.
(2) The height of glow surface：0.56 inches.
(3) Total PINs：10pins.
(4) Public feet：3 8.
(5) Dimensions：12.6x19.0x8.0mm.
(6) Glow color：bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color：black/gray.
(8) Epoxy color：white/red/green/blue/yellow.
(9) Polarity：common anode/Common Cathode.
(10) Using temperature range：-20 to 80 degrees Celsius.
