What is SMD LED

What is SMD LED

SMD LED stands for Surface Mount Device Light Emitting Diode. It is a type of LED that is designed to be mounted directly onto a printed circuit board (PCB) without the need for leads or wires. SMD LEDs are widely used in electronic devices and lighting fixtures due to their small size, high efficiency, and low power consumption.

Normal SMD LED types.
SMD LEDs come in a variety of sizes, including 0402 SMD LED, 0603 SMD LED, 0805 SMD LED, 1206 SMD LED, and larger. The numbers refer to the dimensions of the LED package in millimeters. The smaller the number, the smaller the LED package.SMD LEDs are available in a wide range of colors, including red LED, green LED, blue LED, yellow LED, white LED, and RGB LED (red-green-blue).They are highly efficient and consume very little power, making them ideal for use in battery-powered devices. They also have a long lifespan and are highly reliable, making them a popular choice for use in products that require long-term durability.

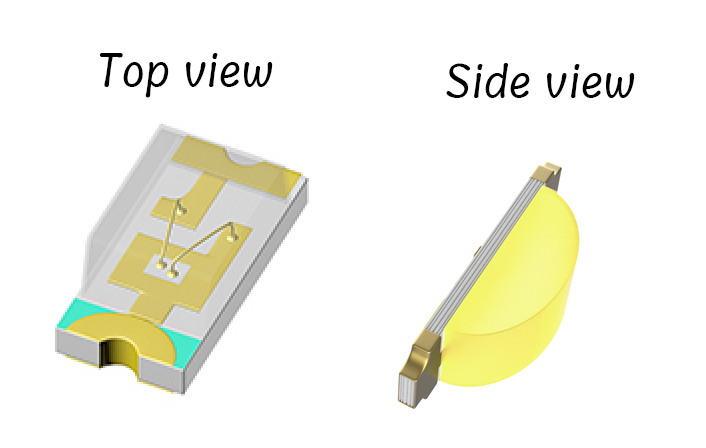

Considering the light emitting method. There are top view SMD LED and Side view SMD LED.Top emitting chip SMD LEDs can provide the lighting you need for portable consumer electronics, backlighting, and indicator applications. Side view LEDs provide high intensity lighting at the precise angle. They provide a right angle illumination in the direction they are mounted. They are available in a variety of colors and dimensions.

SMD LED advantages
Small size: SMD LEDs are very small in size, which makes them ideal for use in compact electronic devices and lighting fixtures.
High efficiency: SMD LEDs are highly efficient and consume very little power, making them ideal for use in battery-powered devices.
Long lifespan: SMD LEDs have a long lifespan and are highly reliable, making them a popular choice for use in products that require long-term durability.
Easy to install: SMD LEDs are easy to install and can be mounted using automated pick-and-place machines during PCB assembly.
Wide range of colors: SMD LEDs are available in a wide range of colors, including red, green, blue, yellow, white, and RGB (red-green-blue).
Low heat generation: SMD LEDs generate very little heat, which makes them ideal for use in products that require low heat dissipation.
Cost-effective: SMD LEDs are cost-effective and offer a good balance between performance and cost.
Overall, SMD LEDs are a versatile and efficient lighting solution that is widely used in a variety of applications where space is a concern. Their small size, low power consumption, and long lifespan make them an ideal choice for a wide range of electronic products and lighting fixtures.

SMD LED applications.
Consumer electronics: SMD LEDs are commonly used in consumer electronics such as smartphones, tablets, laptops, and televisions for backlighting and indicator lights.
Automotive lighting: SMD LEDs are used in automotive lighting applications such as headlights, taillights, and interior lighting.
Signage and displays: SMD LEDs are used in signage and displays for advertising, information, and entertainment purposes.
Architectural lighting: SMD LEDs are used in architectural lighting applications such as accent lighting, cove lighting, and wall washing.
Industrial lighting: SMD LEDs are used in industrial lighting applications such as warehouse lighting, machine vision lighting, and inspection lighting.
Medical devices: SMD LEDs are used in medical devices such as surgical lights, dental lights, and diagnostic equipment.
Horticulture lighting: SMD LEDs are used in horticulture lighting applications to provide the necessary light spectrum for plant growth.
Overall, SMD LEDs are a versatile lighting solution that can be used in a wide range of applications due to their small size, high efficiency, and long lifespan.
