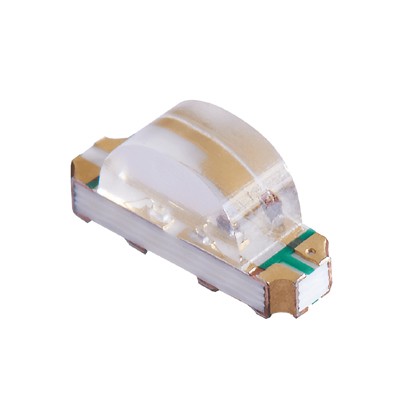

1204 LED SMD RGB

Product Item : S1204RGBAXG
Category： Side view
Package: SMT package1204
Color: RGB
Intensity:151~300mcd 501~700mcd 121~220mcd
Wavelength:621~630nm 521~525nm 461-465nm
INQUIRY EMAIL

Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including cordless and cellular phones, notebook computers, network systems, home appliances, and indoor signboard applications.

Part No.

Color

Wavelength/CT

Lens type

Intensity

View Angle

VF(V)

IF(mA)

S1204RGBAXG

Red

Green

Blue

621~630nm

521~525nm

461-465nm

Water Clear

151~300mcd

501~700mcd

121~220mcd

130°

1.9~2.1V

2.8~3.4V

20mA

Features
0.8 mm x 1.6 mm SMD LED, 0.3 mm thickness
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 3000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant

APPLICATIONS
Backlight Status indicator for keypad and keyboard.
Home and smart appliances
Wearable and portable devices
Healthcare applications
ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.
