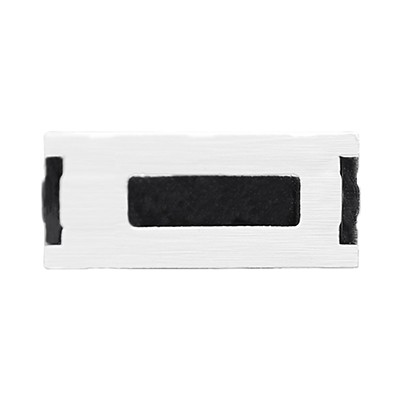

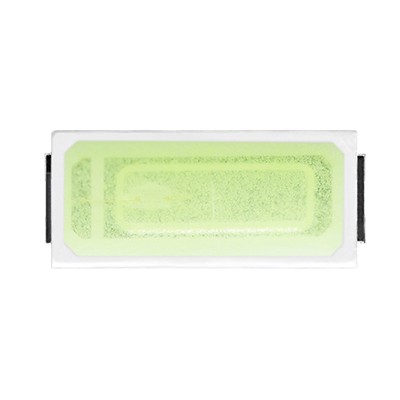

7030 SMD LED ICE BLUE COLOR
- Product Item : A7030IB1W
- Category： 7030 SMD LED
- Package: SMT package 7030
- Color:Ice blue
- Chip:InGaN on Sapphire
- Luminous Intensity:70LM
Descriptions
SMD LED lamps from ArkTech are available in miniature sizes and special configurations for automated PC board assembly and space-sensitive applications. These SMD LED lamps are suitable for use in a wide variety of electronic equipment, including clothing, jewelry, and home decor applications.
| Part No. | Color | Wavelength/CT | Lens type | Intensity | View Angle | VF(V) | IF(mA) |
|
A7030IB1W |
Ice blue | 18000~20000K | Blue Diffused | 70~100LM |
120° |
2.9~3.1V |
350mA |
Features

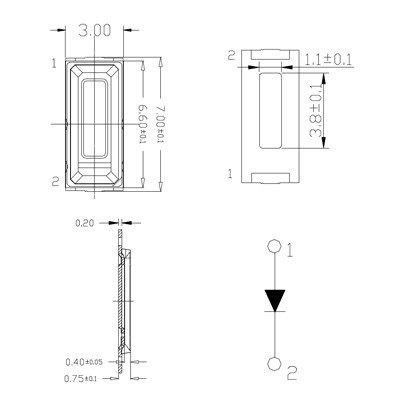

7.0 mm x 3.0 mm SMD LED, 0.75 mm thickness
SMT package, colorless diffused resin
Low power consumption
Wide viewing angle.
Package: 3000 pcs / reel
MSL (Moisture Sensitivity Level): 3
Compatible with automatic placement equipment.
Compatible with reflow solder process.
ESD: 8 kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Halogen-free
RoHS compliant
APPLICATIONS
Ice blue is versatile and can be incorporated into a wide range of applications that reflect its cool and refreshing qualities.
ATTENTION
Observe precautions for handling electrostatic discharge sensitive devices. Electrostatic discharge and power surge could damage the LEDs.
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs. All devices, equipments and machineries must be electrically grounded.
If you need other SMD LED, please check our product categories.
Our production process is closely monitored through an ERP system and MES system, ensuring the stability and traceability of our products.
2.About SMD LED MOQ
We accept orders for a minimum of 1 reel.
3.About SMD LED origin
Our goods are sourced from Wuxi, China
4.About the scale of SMD LED factory
Our factory covers an area of 12000㎡, including a 600㎡ 10k class dust-free, anti-static workshop.
5.About SMD LED warranty
We provide a warranty period of 2 years .
6.About the development history of SMD LED factory
Founded in July 1994, our company's headquarters and R&D base are located in Yixing City, Jiangsu Province. Over the years, we have consistently strived for excellence, and our achievements speak for themselves. In 2007, we successfully implemented an ERP system to optimize our operations. In 2012, we proudly obtained eight patents, showcasing our dedication to innovation. In 2016, we expanded our facilities with the construction of a 100k class dust-free workshop. Finally, in 2018, we integrated the Kingdee Colody system, further enhancing our operational efficiency.
7.About SMD LED quality system
Our factory operates on an ERP system, which allows for efficient management and coordination of our operations. In addition, we are proud to have obtained ISO9001 certification, demonstrating our commitment to quality and customer satisfaction.
8.About SMD LED production capacity
We have the capacity to produce 100kk (100,000,000) pieces of LEDs per month.
9.About SMD LED inventory
For normal items, we maintain a reasonable quantity in our inventory
10.About SMD LED patent
Over the years, we have dedicated significant resources to research and innovation, resulting in the acquisition of more than 24 patents. Our factory has been recognized as a high tech manufacturer in the Jiangsu province.
