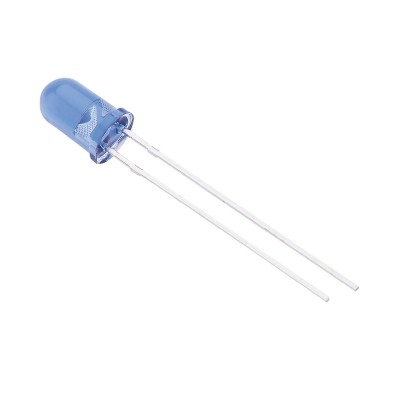

5mm round Infrared Emitting Diode

FEATURES
1. Low power consumption
2. High efficiency
3. General purpose leads

4. High intensity

5. RoHs compliant.

Note:

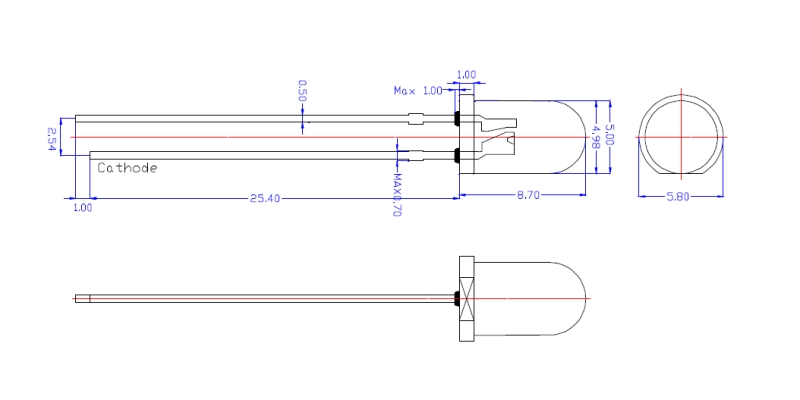

1. All dimensions are millimeters (inches)
2. Tolerance is ±0.25mm(.010”) unless otherwise noted
3. The specifications, characteristics and technical data described in the datasheet are subject to change without prior notice

4. The drawing is different from the actual one, please refer to the sample

5. All design applications should refer to ArkTech through hole LED application notes.
