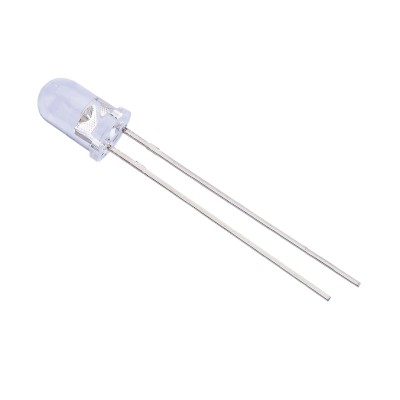

5mm Infrared Emitting Diode water clean

Product Item : LID5G03L1
Category： Infrared LED and Detector
Wavelength λd (nm):880nm
Radiation Intensity Ie (mW/sr):Min. 12 Typ. 28
Viewing Angle (deg.):20°
Forward Current IF (mA):20mA
INQUIRY EMAIL

Part No.

Wavelength
λd (nm)

Radiation Intensity Ie

(mW/sr)

Viewing Angle

(deg.)

Typ. Forward Voltage VF

(V)

Forward Current
IF (mA)

LID5G03L1

880nm

Min. 12
Typ. 28

20°

1.4@IF = 20mA
1.5@IF =100mA

20mA

FEATURES
Extra high radiant power and radiant intensity
Low forward voltage
Suitable for high pulse current operationtensity
High reliability
Pb free products

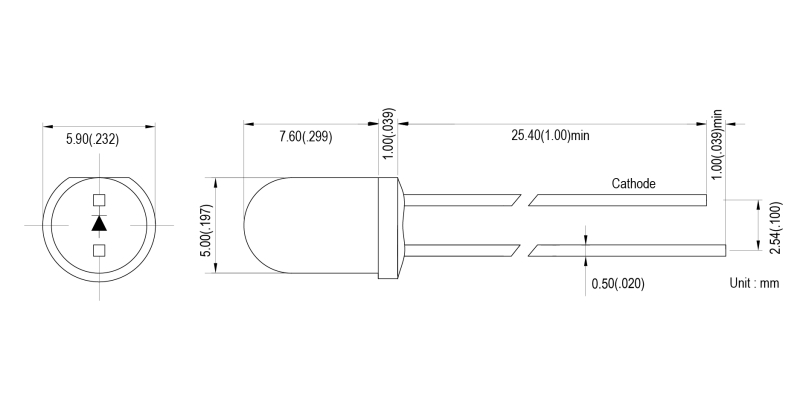

Note:
All Dimensions are in millimeters.
Tolerance is ±0.25mm(0.010 ") Unless otherwise specified.
Protruded resin under flange is 1.5mm(0.059 ") max.
Lead spacing is measured where the leads emerge from the package.
Specification are subject to change without notice
The lamps have sharp and hard points that may injure human eyes or fingers etc., so please pay enough care in the handling.
All design applications should refer to ArkTech through hole LED application notes.
