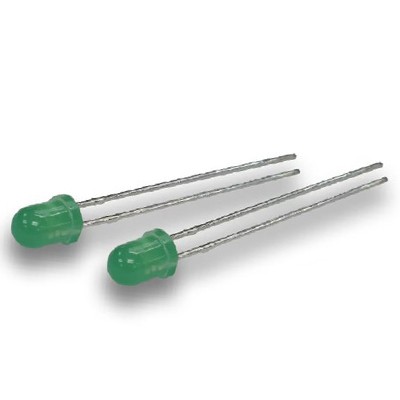

4mm Green Round Shape LED
- Product Item : LRD4R03L1
- Category： Round shape
- Wavelength/CT:565nm
- Intensity:16-32mcd
- VF(V):2.0~2.4V
- IF(mA):20mA
| Part No. | Color | Wavelength/CT | Lens type | Intensity | View Angle | VF(V) | IF(mA) |
|
LRD4R03L1 |
Green | 565nm | Diffused Green | 16-32mcd | 80° | 2.0~2.4V | 20mA |
FEATURES
Low power consumption
Long life, solid state reliability
Available on tape and reel
RoHS compliant
APPLICATIONS
Status indicator
Illuminator
Signage applications
Decorative and entertainment lighting
Commercial and residential architectural lighting
DESCRIPTION
The Green source color devices are made with Gallium Phosphide Green Light Emitting Diode
All design applications should refer to ArkTech through hole LED application notes.
