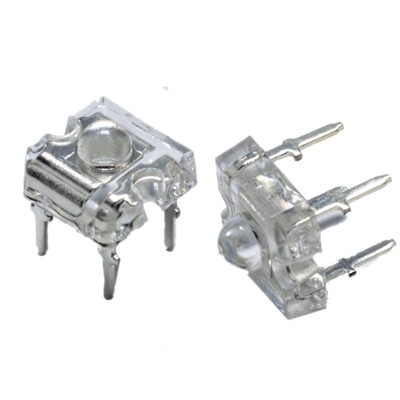

3mm green piranha led super fulx led
- Category： 3mm
- Wavelength:520nm
- Forward Voltage:2.6-3.4V
- Viewing Angle:40°
- Current：10
Application
-Tailer lights
-Traffic lights
-Decorative lights
-LED modules
- General use
| Part No. | Color | Wavelength/CT | Lens type | Intensity | View Angle | VF(V) | IF(mA) |
|
P3CR01TJ |
Red | 620~630nm | Water Clear | 900~1200mcd | 30° | 1.9~2.2V | 20mA |
|
P3CY01TJ |
Yellow | 585~595nm |
Water Clear |
600~800mcd |
30° |
1.9~2.2V |
20mA |
|
P3CB01TJ |
Blue |
455~465nm |
Water Clear |
400~600mcd |
30° |
2.8~3.4V |
20mA |
|
P3CYG01TJ |
Yellowlish Green |
565~575nm |
Water Clear |
200~500mcd |
30° |
1.9~2.2V |
20mA |
|
P3CPG01TJ |
Pure Green |
520~525nm |
Water Clear |
1200~1500mcd |
30° |
2.8~3.4V |
20mA |
|
P3CO01TJ |
Orange |
600~610nm |
Water Clear |
400~600mcd |
30° |
1.9~2.2V |
20mA |
|
P3CW01TJ |
White | 1800~20000K |
Water Clear |
1500~2000mcd |
30° |
2.8~3.4V |
20mA |
