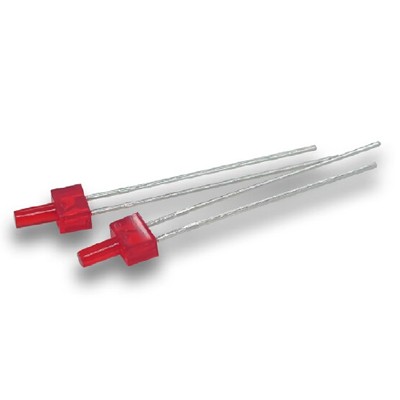

2mm Flat Top Hyper Red Color LED

Product Item : LFD2R03L1
Category： Flat top shape
Wavelength/CT:645nm
Intensity:400-800mcd
VF(V):1.9~2.5V
IF(mA):20mA
INQUIRY EMAIL

Part No.	Color	Wavelength/CT	Lens type	Intensity	View Angle	VF(V)	IF(mA)
LFD2R03L1	Red	645nm	Diffused Red	400-800mcd	50°	1.9~2.5V	20mA

FEATURES
Low power consumption
Long life, solid state reliability
Available on tape and reel
RoHS compliant
APPLICATIONS
Status indicator
Illuminator
Signage applications
Decorative and entertainment lighting
Commercial and residential architectural lighting

DESCRIPTION
The Hyper Red source color devices are made with AlGaInP on GaAs substrate Light Emitting Diode
Electrostatic discharge and power surge could damage the LEDs
It is recommended to use a wrist band or anti-electrostatic glove when handling the LEDs
All devices, equipments and machineries must be electrically grounded

All design applications should refer to ArkTech through hole LED application notes.
