0.8 inch two digits

Product Item : R210563A
Category： Dual digits
7 segment led display
red color
high intensity
small size
INQUIRY EMAIL

Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Part No.	Color	Wavelength/CT	Polarity	Size	Digits	VF(V)	IF(mA)
R210563A	Red	620~630nm	CA/CC	0.56"	Two	1.9~2.2V	20mA
Y210563A	Yellow	585~595nm	CA/CC	0.56"	Two	1.9~2.2V	20mA
B210563A	Blue	455~465nm	CA/CC	0.56"	Two	2.8~3.4V	20mA
YG210563A	Yellowlish Green	565~575nm	CA/CC	0.56"	Two	1.9~2.2V	20mA
PG210563A	Pure Green	520~525nm	CA/CC	0.56"	Two	2.8~3.4V	20mA
O210563A	Orange	600~610nm	CA/CC	0.56"	Two	1.9~2.2V	20mA
W2105663A	White	1800~20000K	CA/CC	0.56"	Two	2.8~3.4V	20mA

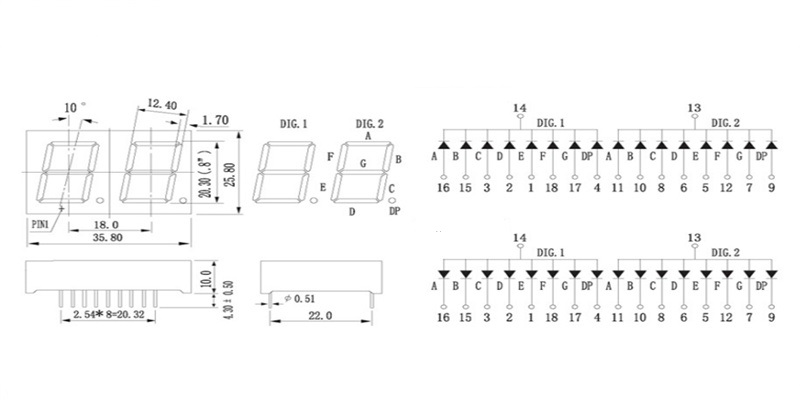

Parameters

(1) Digit: double.
(2) The height of glow surface：0.8 inches.
(3) Total PINs：18pins.
(4) Public feet：13 14.
(5) Dimensions：35.8x25.8x10.0mm.
(6) Glow color：bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color：black/gray.
(8) Epoxy color：white/red/green/blue/yellow.
(9) Polarity：common anode/Common Cathode.
(10) Using temperature range：-20 to 80 degrees Celsius.
