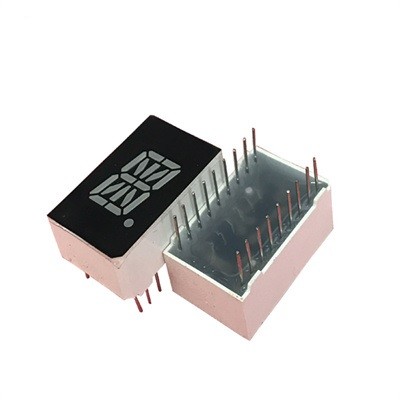

0.5 inch single segment display

Product Item : R11303A
Category： Alpha Numeric
Various color
High intensity
long life
OEM, ODM
INQUIRY EMAIL

Features

- High intensity and reliability

-High brightness, Low power requirement

-IC compatible , Easy assembly

- RoHS compliant, Pb free

-Wide View Angle

-Standard: black surface, white segment

Part No.	Color	Wavelength/CT	Polarity	Size	Digits	VF(V)	IF(mA)
R11053A	Red	620~630nm	CA/CC	0.5"	One	1.9~2.2V	20mA
Y11053A	Yellow	585~595nm	CA/CC	0.5"	One	1.9~2.2V	20mA
B11053A	Blue	455~465nm	CA/CC	0.5"	One	2.8~3.4V	20mA
YG11053A	Yellowlish Green	565~575nm	CA/CC	0.5"	One	1.9~2.2V	20mA
PG11053A	Pure Green	520~525nm	CA/CC	0.5"	One	2.8~3.4V	20mA
O11053A	Orange	600~610nm	CA/CC	0.5"	One	1.9~2.2V	20mA
W11053A	White	1800~20000K	CA/CC	0.5"	One	2.8~3.4V	20mA

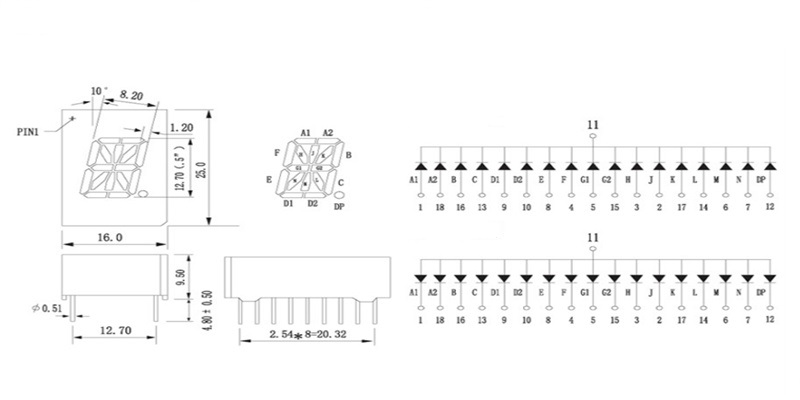

Parameters

(1) Digit: single.
(2) The height of glow surface：0.5 inches.
(3) Total PINs：18pins.
(4) Public feet：11.
(5) Dimensions：16.0x25.0x9.5mm.
(6) Glow color：bright red/yellow/yellow/amber/blue/white/pure green.
(7) Reflected cavity surface color：black/gray.
(8) Epoxy color：white/red/green/blue/yellow.
(9) Polarity：common anode/Common Cathode.
(10) Using temperature range：-20 to 80 degrees Celsius.
